Locator NW Mech Dwg - NW-D30345 Type Drawing Doc Number D30345
Description Mallet Hinge, Rear Frame Crosstie and Driver Brake Fulcrum. L.P. Engine, Loco. Class Y3, Y3a, Y4
Date 12/10/1929 Revision Date 06/13/1955
Author N&W Rwy - Motive Power Accession 2001.001 : Mark Faville

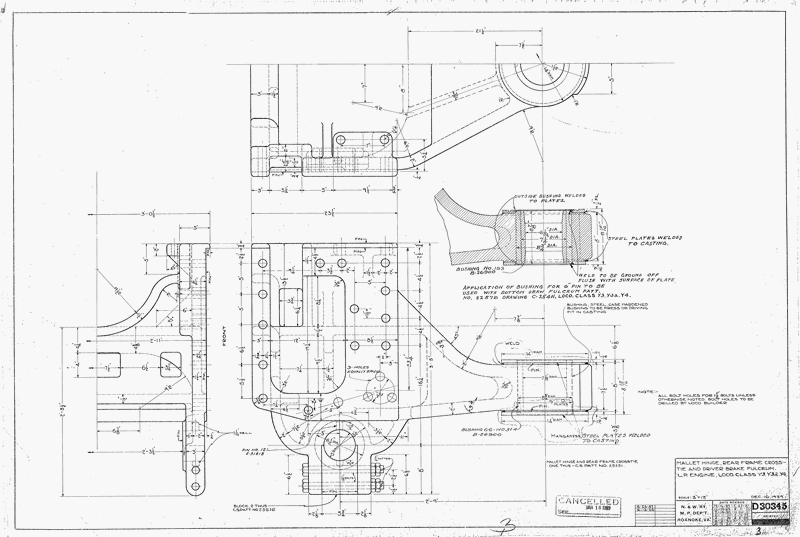

Mallet Hinge, Rear Frame Crosstie and Driver Brake Fulcrum. L.P. Engine, Loco. Class Y3, Y3a, Y4

Size: 33in x 22in (83cm x 56cm)
